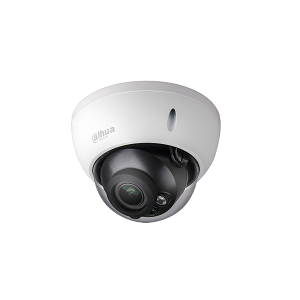

DH-HAC-HDBW1400R-VF : DAHUA 4MP HDCVI IR DOME CAMERA

Model: DH-HAC-HDBW1400R-VF

Categories: 4.0 MP HDCVI, Camera, CCTV, Dahua, HDCVI Camera.

and: Dahua

Description

Description

Camera
Image Sensor 1/3″ CMOS
Effective Pixels 2688(H)x1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.03 Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR on/Off Control Auto/Manual
IR LEDs 2
Lens
Lens Type Vari-focal lens/ Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 98°~26°
Focus Control Manual
Close Focus Distance 200mm
7.87″
Pan/Tilt/Rotation
Pan/Tilt/Rotation Pan: 0° ~ 355°
Tilt: 0° ~ 75°
Rotation: 0° ~ 355°
Video
Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output /
CVBS video output (Can switch)
Day/Night Auto (ICR)/ Manual
OSD Menu Multi-Language
BLC Mode BLC/HLC/DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto/Manual
Smart IR Auto/Manual
Certifications
Certifications CE: (EN55032, EN55024, EN50130-4)
FCC: (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL: (UL60950-1 CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 4.1W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67, IK10
Construction
Casing Aluminium
Dimensions Φ122mm×88.9mm (Φ4.8″×3.5″)
Net Weight 0.39KG (0.86Ib)
Gross Weight 0.49KG (1.08Ib)
[rt_button_style title=”CATALOG” link=”url:https://www.saxco.com.my/wp-content/uploads/2017/09/DH-HAC-HDBW1400R-VF.pdf|||”]
