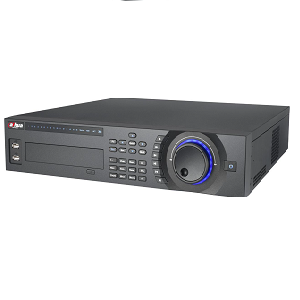

DH-DHI-HCVR7816S : DAHUA 16CH TRIBRID 1080P HDCVI & ANALOG & IP 2U DVR

Model: DH-DHI-HCVR7816S

Description

Description

SpecificationsDownload
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video
Input 16 Channel, BNC
Video Standard HDCVI: 1080P/720P HDCVI Camera
Analog: NTSC(525Line, 60f/s), PAL(652Line, 50f/s), Effio 960H
Camera
IP: 1080P/720P/D1/CIF IP Camera
Audio
Input 16 Channel, BNC
Output 1 Channel, BNC
Two-way Talk 1 channel input, 1channel output, BNC
Display
Interface 2 HDMI, 1 VGA,1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera tittle, Time, Video loss, Camera lock, Motion detection,
Recording
Recording
Video/Audio Compression H.264/G.711
Record Resolution 1080P(1920× 1080)/720P(1280× 720)/960H(960× 576/960× 480)/D1/4CIF(
704× 576/704× 480) / CIF(352× 288/352× 240) / QCIF(176× 144/176×
120)
Record Rate Main Stream: 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra Stream: CIF/QCIF(1~15/30fps)
Bit Rate 48~8192Kb/s
Recording Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval 1~120min (default: 60min), Pre-record:1~30 sec, Post-record:
10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot,
Buzzer & Screen tips
Motion Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera
Blank
Alarm Input 16 Channel
Relay Output 6 Channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/ Date, Alarm, MD & Exact search (accurate to second), Smart
search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file,
Previous file, Next camera, Previous camera, Full screen,
Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/ eSATA Device/ Internal SATA burner/Network
Network
Ethernet 2RJ-45 port(10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
PPPOE, DDNS, FTP, IP Filter, Alarm Server
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 8 SATA ports, up to 32TB
External HDD 1 eSATA port, up to 16TB
Auxiliary Interface
USB 4 ports(2 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port RS485 for PTZ control, 1 port RD422 for keyboard
General
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 40W(without HDD)
Working Environment -10°C ~ 55°C / 10%~90%RH / 86~106kpa
Dimension(WxDxH) 2U, 440mm x 460mm x 89mm
Weight 6.5KG(without HDD)
[rt_button_style title=”download catalog” link=”url:https://www.saxco.com.my/wp-content/uploads/2018/01/HCVR7804-7808-7816S.pdf|||”]
