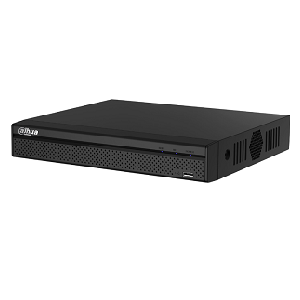

DH-DHI-XVR5108HE-X : DAHUA 8CH PENTA-BRID 1080P MINI 1U DVR

Model: DH-DHI-XVR5108HE-X

Categories: , , ,
Description

Description

DESCRIPTION

SpecificationsDownload
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 8 Channel, BNC
HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 8 4 Channel, each channel up to 6MP
Audio In/Out 8 Channel input,1 Channel output, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.265 /H.265/H.264 /H.264
Resolution 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub steram D1/CIF(1~15fps)
Video Bit Rate 32Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1~60min (default: 60min), Pre-record:1~30 sec,
Post~record:10~300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled:1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,
P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max.User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss, Tampering and Diagnosis
Alarm input 8
Relay Output 3
Playback and Backup
Playback 1/4/9
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 10TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB 2.0
RS232 N/A
RS485 1 Port, for PTZ Control
Electrical
Power Supply DC12V/2A
Power Consumption(without HDD) <10W
Construction
Dimensions Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)
Net Weight(without HDD) 1.2kg (2.6 lb)
Gross Weight 1.9kg (4.2 lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 0~ 90% RH
Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F) , 0~ 90% RH
Certification
Certification FCC Part 15 Subpart B
CE: CE-LVD EN 60950-1/IEC 60950-1
CE-EMC EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,
EN 55024
UL UL 60950-1
[rt_button_style title=”download catalog” link=”url:https://www.saxco.com.my/wp-content/uploads/2018/06/DH-XVR5108-16HE-X.pdf|||”]
