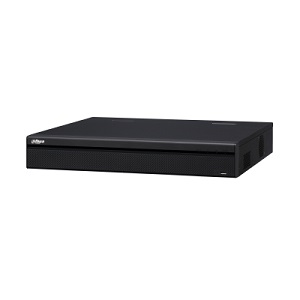

DH-DHI-XVR5408L : DAHUA 8CH PENTA-BRID 1080P LITE 1.5U DVR

Model: DH-DHI-XVR5408L

Categories: , , ,
Description

Description

DESCRIPTION

SpecificationsDownload
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 8CH: 1 HDMI, 1VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 8CH: 1/4/8/9/16
OSD Camera tittle, Time, Video loss, Camera lock, Motion detection,
Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss, Tampering
and Diagnosis
Alarm Input 8/16/16
Relay Output 6
Playback and Backup
Playback 8CH: 1/4/9
Search Mode Time/ Date, Alarm, MD and Exact Search (accurate to second),
Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Repeat, Shuffle, Backup Selection,
Digital Zoom
USB Device
Storage
Internal HDD 4 SATA Ports, up to 8TB capacity for each disk
eSATA 1 Port
Auxiliary Interface
USB 8CH: 3 USB Ports (3 USB 2.0)
RS232 1 port, for PC communication & Keyboard
RS485 1 Port, for PTZ Control
RS422 1 Port, for PTZ Control
Audio and Video
HDCVI Camera Input 8 Channel
IP Camera Input 8 4/16 8/32 Channel, each channel up to 5MP
Audio In/Out 4/1, BNC
Two-way Talk 1 Mic in, 1 Mic Out, BNC
Recording
Compression/th> H.264 /H.264
Resolution 1080P, 1080N, 720P, 960H, D1 HD1, BCIF, CIF, QCIF
Record Rate Main stream: 1080P(1~15fps)
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:
D1/CIF/QCIF(1~15fps)
Bit Rate 1 Kbps~6144Kbps Per Chennel
Record Mode Manual, Schedule (Regular, Continuous), MD(Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1~60 min(default: 60min), Pre-record: 1~30 sec, Post-record:
10~300 sec
Network
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,
IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max.User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Electrical
Power Supply AC100V-240V, 50/60Hz
Power Consumption <30W (Without HDD)
Environmental
Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 0~ 90% RH
Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F), 0~ 90% RH
Construction
Dimensions 1.5U, 440mm x 417mm x 76mm (17.3″x 16.4″x 3.0″)
Net Weight 6KG (13.23Ib)(without HDD)
Gross Weight 7KG(15.43Ib)
Installation Desktop installation/Rack-mounted
Certifications
Certifications FCC: Part 15, Subpart B: 2015
CE: EN 55032: 2015(Class B), EN 55024:2010 A1: 2015, EN 50130-
4: 2011 A1: 2014, EN 61000-3-2:2014, EN 61000-3-3:2013
UL:EN 60950-1: 2006 A1: 2010 A11: 2009 A12: 2011 A2″ 2013
[rt_button_style title=”download catalog” link=”url:https://www.saxco.com.my/wp-content/uploads/2017/09/DHI-XVR5408-5416-5432L.pdf|||”]
