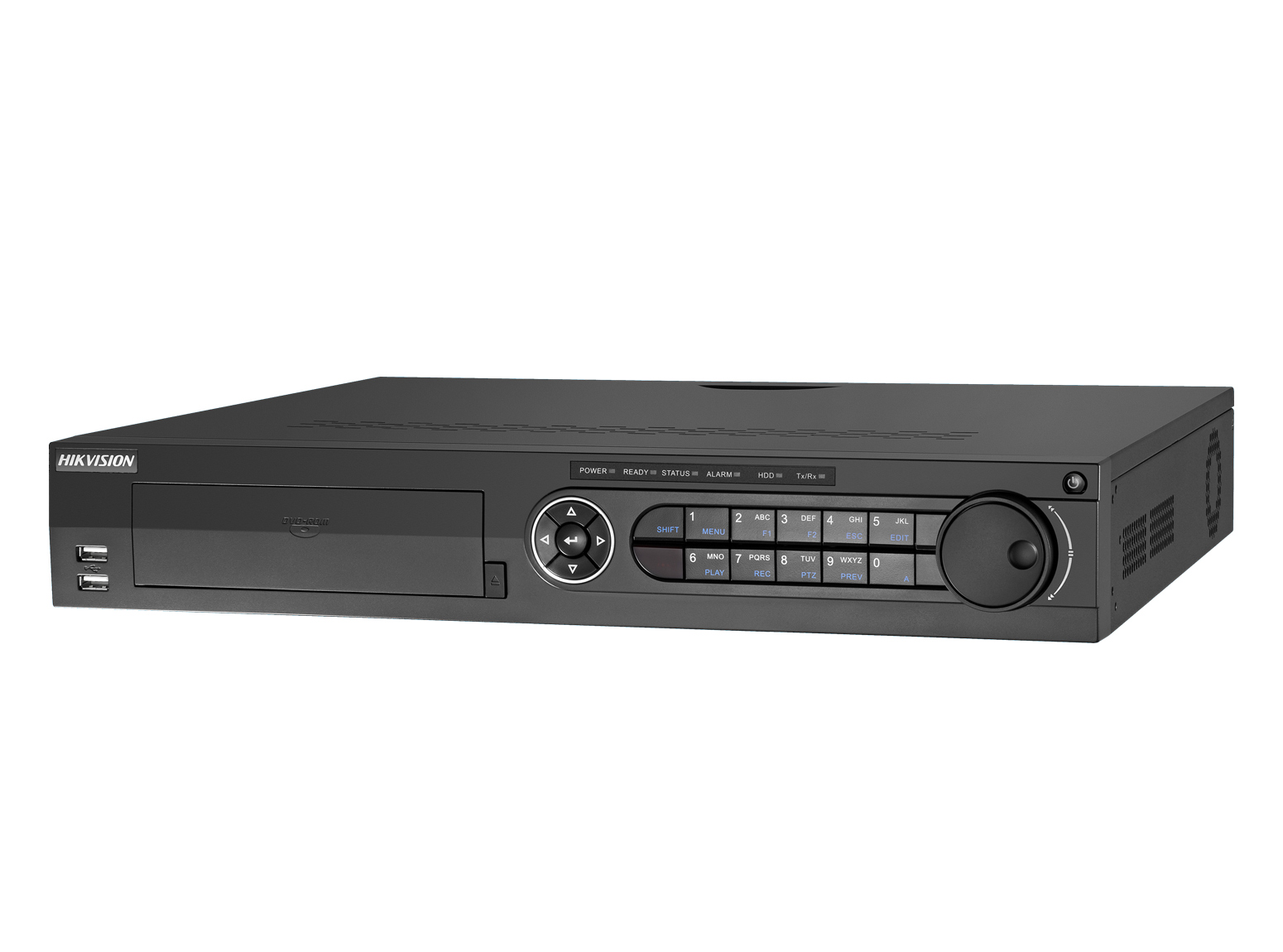

DS-7316HGHI-SH

16CH 1080/720P Turbo Digital Video Recoder

  • Connectable to HD-TVI analog cameras
  • Connectable to the Coaxitron camera/dome with long transmission distance
  • 1080p / 720p video resolution
  • 4 SATA interfaces for HDD with up to 6TB capacity
  • Simultaneous HDMI, VGA, CVBS output up to 1080P
  • Spport access by EZVIZ cloud P2P
Description

Description

SPECIFICATIONS
VIDEO / AUDIO INPUT
Video compression H.264
Analog and HD-TVI video input 16CH, BNC interface (1.0Vp-p, 75 Ω)
Supported camera types 720P/25, 720P/30, 50, 60, 1080P/CVBS720P/25, 720P/30, 50, 60, 1080P/CVBS
Supported AHD input 720P/25, 720P/30
IP video input 2-ch, (up to 10-ch), 2MP resolution
Audio compression G.711u
Audio input / Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO / AUDIO OUTPUT
CVBS output Support
HDMI / VGA output 1920 x 1080/60 Hz ,1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Ecoding resolution Main stream: 1080P(non-real time) / 720P / VGA / 4CIF / CIF
Sub stream: WD1(non-real time) / 4CIF(non-real time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16fps to Real-time frame rate
Sub stream: 1/16fps to Real-time frame rate
Video bitrate 32kbps to 6Mbps
Audio output 2-ch, RCA(Linear, 1KΩ, for VGA output and CVBS output respectively)
Audio bitrate 64kbps
Dual stream Support
Stream type Video / Audio
Synchronous playback 16-ch
NETWORK MANAGEMENT
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
HARD DISK
SATA 4 SATA interface; 1eSATA interface
Capacity Up to 6 TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1x 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface 1 standard RS-232, RS-485, keyboard
USB port 3× USB2.0
Alarm in/out 16 / 4
GENERAL
Power supply 100 ~ 240VAC, 47 ~ 63Hz
Consumption (without hard disks) ≤ 55W
Working temperature -10 ºC ~ 55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 19-in rack mounted 1.5U chassis
Dimensions (W × D × H) 445 x 390 x 70mm
Weight (without hard disks) ≤ 5Kg (11.0lb)
