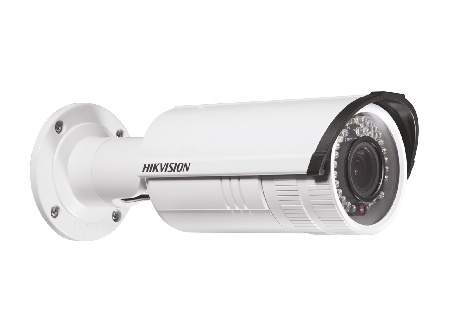

DS-2CD2620F-IS

2MP Vari-focal IR Bullet Network Camera

  • 2 Megapixel high resolution
  • HD real-time video
  • 2.8 ~ 12mm vari-focal lens
  • IR LEDs at up to 30m
  • Support WIFI connectivity
  • IP66, DWDR & 3D DNR & BLC
Description

Description

Specifications
CAMERA
Image Sensor 1/3-inches Progressive Scan CMOS
Min. illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time 1/3 s to 1/100,000s
Lens 2.8 ~ 12 mm @F1.4
Angle of view: 113°-33.8°
Lens mount Φ14
Day & night IR cut filter with auto switch
Digital noise reduction 3D Digital Noise Reduction
Wide dynamic range Digital WDR
Backlight compensation Yes, zone configurable
COMPRESSION STANDARD
Video compression H.264 / MJPEG
H.264 Type Main Profile
Bit rate 32 Kbps – 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution 1920×1080
Frame rate 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image settings Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
NETWORK
Network storage NAS
Alarm trigger Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark, dual stream
INTERFACE
Communication interface 1 RJ45 10M / 100M ethernet port
Onboard Storage Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
GENERAL
Operating conditions -30 °C ~ 60 °C (-22°F ~ 140 °F)
humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)± 10%
Power consumption Max. 5.5W
Ingress protection level IP66
IR range 30 meters
Dimensions (mm) 95 x 105 x 258.6 mm
Weight 1200g
