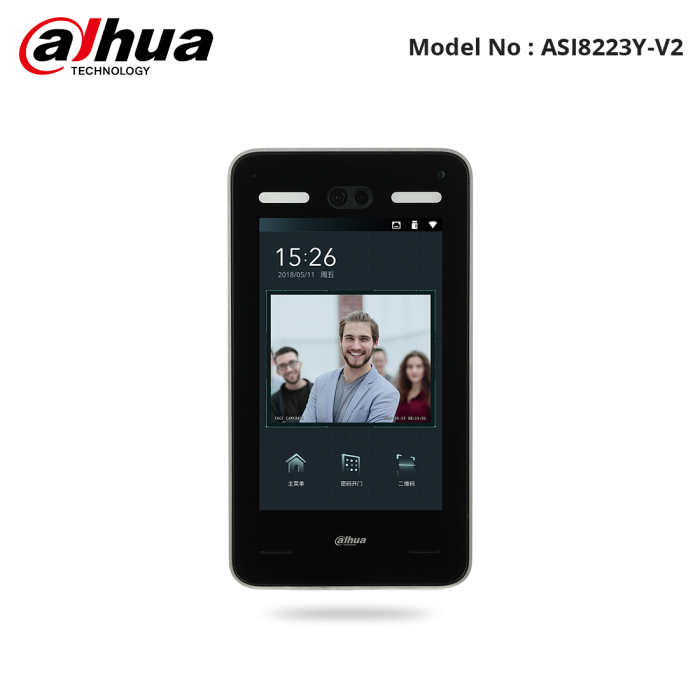

DHI-ASI8223Y(V2)

DHI-ASI8223Y(V2)
Description

Description

Capacity
Logs 200,000
Users 60,000
Passwords 60,000
Faces 10,000
Face Recognition Reader
Camera 2 megapixel dual camera
Screen Resolution 1280*800
Range Height from 1.4 meters to 1.9 meters
Distance 0.3m-2m
Accuracy >99%
Speed <0.5s/person
Exposure Compensation Adjustable white light
WDR support
Interface
To PC RJ45(10/100M)
To Reader Wiegand/RS485
To USB USB 2.0
RS232 1
Input/Output Ports
Input Ports Door sensor x 1, Exit button x 1, Alarm input x 2
Output Ports Relay:Door lock x 1

TTL:Bellx1,Alarmx2

General
Working Temperature -30°C~ 70°C
Relative Humidity 5%~95%
Power Supply 24W ( DC12V±20% , 2A )
Dimension (H*W*D) 336*185*44 (mm)
Gross Weight 4.5Kg
Installation Wall-mounted , Bracket Of Barrier
Protection Level IP55
Application Situation Indoor / Outdoor
Graphic Advertising Yes
Upgrade Online, USB
External Reader Wiegand 26/34/66, RS485
Barrier Bracket Extensible
Voice Prompt Yes
Function
Access Control Anti-passback, First-card Unlock, Multi-check Unlock, Remote-check Unlock, Real-time monitoring, Multi-card Unlock
User Management General, VIP, Guest, Patrol, Black List, Disable, Duress(Card/Fingerprint/Password)
Alarm Function Door time Out Alarm, Intrusion Alarm, Duress Alarm, Tamper Alarm, Unvailable Card Over Time Alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
