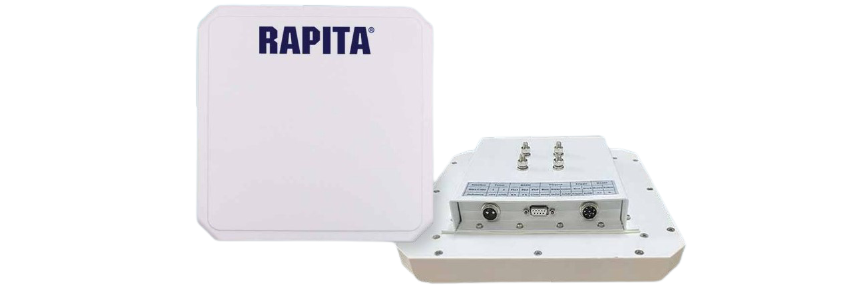

MI-1806E – RAPITA SMART PASSIVE READER

Mi-1806E Smart Passive Reader is designed upon fully self-intellectual property. Based on
proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application
systems such as Logistics, Access Control, Anti-counterfeit and Industrial Production Process Control System.

Model : MI-1806E

Brand : MDT

Compare
Description

Description

PRODUCT CATALOGUE
Specification Description
Protocol ISO 1800-6C E(PC Gen2), ISO 1800-6B
Frequency 902MHz~928MHz or 865MHz~868MHz or customize others frequency
according to your needs
Output Power 0 – 30 dBm
Data Ports Standard : Wiegand 26/34, RS232; Software Programmable
Option : RJ45, Wi-Fi (Customize)
Data Input Port Trigger input one team, anti-collision and multi-reading
Reading Range Up to 10 meters off air. 3 to 6 meter depending on type of solar film
Reading Clue Buzzer & LED light
Antenna Built-in 9dbi circular polarization antenna
Power Supply Industrial Power Supply
Input: 100 – 240V, 1.6A Output: 12V, 5A
Dimension 280mm x 280mm x 60mm
Weight 1.4kg
Operation Temp -20℃~＋80℃
