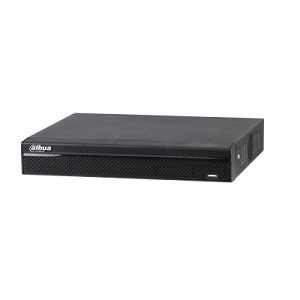

DH-DHI-XVR5116HS : DAHUA 16CH PENTA-BRID 1080P-LITE COMPACT 1U DVR

Model: DH-DHI-XVR5116HS

Categories: , , ,
Description

Description

DESCRIPTION

SpecificationsDownload
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer
and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss, Tampering
and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 16CH: 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 16CH:2 USB Ports (1 USB 2.0,1 USB 3.0)
RS232 N/A
RS485 1 Port, for PTZ Control
Audio and Video
HDCVI Camera Input 16 Channel
IP Camera Input 16 8 Channel: Each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264 /H.264
Resolution 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream 1080P(1~15fps)
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF
(1~25/30fps)
Sub stream D1/CIF/QCIF(1~15fps)
Bit Rate 1kbps~6144kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD(Video detection:
Motion Detection, Video Loss, Tampering),Alarm, Stop
Record Interval 1~60min (default: 60min), Pre-record:1~30 sec,
Post~record:10~300 sec
Network
Interface 16CH:1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP,
DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Support Dahua IP camera, DVR, NVS, etc.)
Max.User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Electrical
Power Supply DC12V/2A
Power Consumption <10W(Without HDD)
Environmental
Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 0 ~ 90% RH
Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F), 0 ~ 90% RH
Construction
Dimensions Compact 1U, 260x236x48mm(10.2″x9.3″x1.9″)
Net Weight 0.75KG (1.7Ib)(without HDD)
Gross Weight 1.5kg (3.3lb)
Installation Desktop installation
Certification
Certification FCC: Part 15 Subpart B ICES 003 Issue 6
CE: EN 55032: 2012 AC:2013 (Class B)
EN 55024 : 2010 EN 61000-3-2 : 2014
EN 50130-4: 2011 EN 61000-3-3 : 2013
UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07
[rt_button_style title=”download catalog” link=”url:https://www.saxco.com.my/wp-content/uploads/2017/08/DHI-XVR5104_5108_5116HS.pdf|||”]
