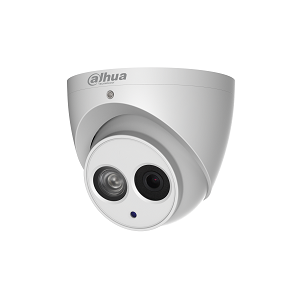

DH-IPC-HDW4431EMP-AS : DAHUA 4MP IR EYEBALL NETWORK CAMERA

Model: DH-IPC-HDW4431EMP-AS

and: Dahua

Description

Description

Camera
Image Sensor 1/3” 4 Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min.Illumination 0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm, 6mm optional)
Max Aperture F2.0 (F.20,F2.0)
Angle Of View H: 104° (87°, 55°), V:57° (48°, 31°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan: 0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abondoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265 /H.265/H.264 /H.264
Streaming Capability 3 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/10fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps
H.265: 14~9984Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC/HLC/WDR(120dB)
White Balance Auto/Manual/Street Lamp/Outdoor/ Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/G.726
Network
Ethernet RJ-45(10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast/Multicast
Max.User Access 10 Users/ 20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE: (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <5W
Environmental
Operating Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH
Storage Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% R
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ106mm×93.7mm (4.17”×3.69”)
Net Weight 0.47KG (1.04Ib)
Gross Weight 0.65KG (1.43Ib)
[rt_button_style title=”CATALOG” link=”url:https://www.saxco.com.my/wp-content/uploads/2018/02/DH-IPC-HDW4431EM-AS_Datasheet_20170329.pdf|||”]
