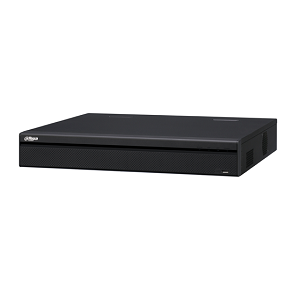

DH-DHI-NVR5416-16P-4K-S2 : DAHUA 16 CHANNEL 1.5U 16POE 4K & H.265 PRO NETWORK VIDEO RECORDER

Model: DH-DHI-NVR5416-16P-4K-S2

Description

Description

SpecificationsDownload
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 16 Channel
Two-way Talk 1 Channel Input, 1 Channel Output,RCA
Display
Interface 2 HDMI (up to 3840×2160, Different Source), 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 1st Screen: 16CH: 1/4/8/9/16
2nd Screen: 1/4/8/9/16
OSD Camera tittle, Time, Video loss, Camera lock, Motion detection,
Recording
Recording
Compression Smart H.265 /H.265/Smart H.264 /H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Rate 320Mbps
Bit Rate 16kbps~20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection), Alarm,
IVS),Stop
Record Interval 1~120 min (default: 60min), Pre-record: 1 ~30 sec, Post-record:
10~300sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot,
Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss and
Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen, Repeat,
Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Network
Interface 1 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Port
PoE 16 ports (IEEE802.3af/at)
Max 25.5W for single port, 150W in total
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search
(Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface N/A
Max.User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 4 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode Single
eSATA 1 eSATA
SAS N/A
Auxiliary Interface
USB 3 USB Ports (2 Rear USB 3.0, 1 Front USB 2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply Single, AC100V~240V, 50~60Hz
Power Consumption <17.5W (Without HDD)
Environmental
Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F), 0 ~ 90% RH
Construction
Dimension 1.5U, 440mm x 411.1mm x76mm;
(17.3″x16.2″x3.0″)
Net Weight 4.65KG(10.3Ib)(without HDD)
Gross Weight 7kg(15.4 Ib)
Installation Rack-mouted
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63, 4-2014
UL UL 60950-1 and CAN/CSA C22.2 No 60950-1
[rt_button_style title=”download catalog” link=”url:https://www.saxco.com.my/wp-content/uploads/2017/09/DHI-NVR5416_5432_5464-16P-4KS2.pdf|||”]
