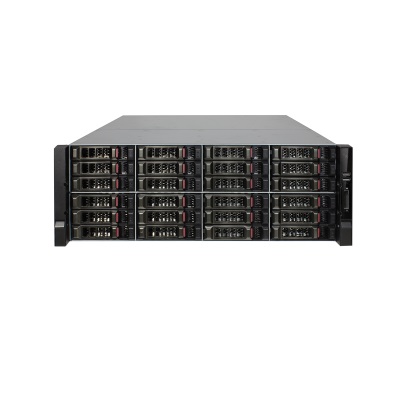

System | ||
---|---|---|
Main Processor | Intel Core i7 Processor | |
Operating System | Embedded LINUX | |
Audio and Video | ||
IP Camera Input | 256 Channel | |
Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | |
Display | ||
Interface | 2 HDMI (different Source), 1 VGA 8 HDMI(Optional) |
|
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36/64 2nd Screen: 1/4/8/9/16 |
|
OSD | Camera tittle, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording | ||
Compression | H.264/MJPEG | |
Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc. | |
Record Rate | 512Mbps | |
Bit Rate | 16kbps~20Mbps Per Channel | |
Record Mode | Manual, Schedule (Regular, MD(Motion Detection), Alarm, IVS), Holiday, Stop |
|
Record Interval | 1~120min (default: 60min), Pre-record: 1~30 sec, Post-record: 10~300sec |
|
Video Detection and Alarm | ||
Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss and Tampering |
|
Alarm input | 4 Channel, Low Level Effective, Green Terminal Interface | |
Relay Output | 4 Channel, NO/NC programmable, Green Terminal Interface | |
Tracking Trigger Event | Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc | |
Playback and Backup | ||
Playback | 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode |
|
Search Mode | Time/Date, Alarm, MD and Exact Search(accurate to second) | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode | USB Device/ Network | |
Network | ||
Interface | 4 RJ-45 Ports(10/100/1000Mbps | |
Ethernet Port | 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports |
|
PoE | N/A | |
Network Function | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|
Optical Fiber Interface | 2 Giga Optical Fiber Interface | |
Max.User Access | 128 users | |
Smart Phone | iPhone, iPad, Android | |
Interoperability | ONVIF 2.4, CGI Conformant | |
Storage | ||
Internal HDD | 24 SATA III Ports, Up to 8TB capacity for each HDD | |
HDD Mode | Single, Raid 0/1/5/6/10/50/60(Enterprise-level HDDs are recommended),Support Global HDD Hot-spare |
|
eSATA | 1 eSATA Port (Please contact tectnical engineer to confirm the compatible device) |
|
SAS | 2 Mini SAS Port, for Storage Expansion | |
Auxiliary Interface | ||
Front Cover | Support Hot-swap | |
USB | 4 USB Ports (2 USB 2.0, 2 USB 3.0 | |
RS232 | 1 Port, for PC Communication and keyboard | |
RS485 | 1 Port, for PTZ Control | |
Electrical | ||
Power Supply | AC100V~240V, 50`60Hz | |
Power Consumption | <200W(Without HDD) | |
Environmental | ||
Operating Conditions | -10°C ~ 55°C ( 14°F ~ 131°F), 86 ~ 106kpa | |
Storage Conditions | -20°C ~ 70°C (-4°F ~ 158°F), 0 ~ 90% RH | |
Construction | ||
Dimensions | 4U, 482.6mm x 544.45mm x 175mmmm (19″x21.4″x6.9″) |
|
Net Weight | 24.5KG(54.0 Ib)(without HDD) | |
Gross Weight | 37.5KG(82.7 Ib) | |
Installation | Rack-Mounted | |
Certifications | ||
CE | EN55022, EN55024, EN50130-4, EN60950-1 | |
FCC | Part 15 Subpart B, ANSI C63.4-2014 | |
UL | UL 60950-1 an CAN/CSA C22.2 No.60950-1 |
