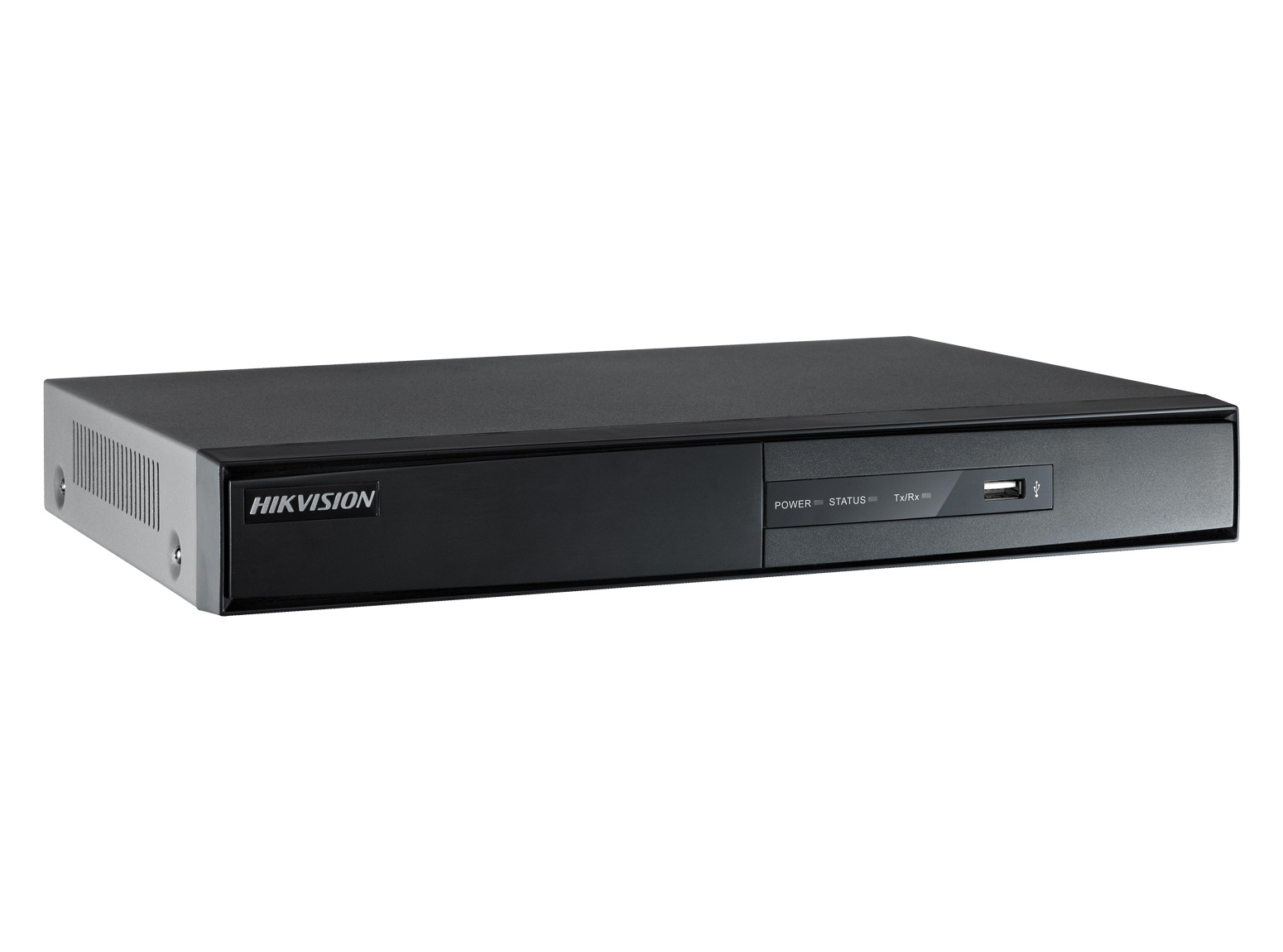

DS-7204HQHI-F1/N

4CH Tribrid 1080/720P Turbo Digital Video Recoder

  • Connectable to HD-TVI, AHD, network analog cameras
  • Support HIKVISION-C protocol for connecting camera over coax.
  • 1080p lite mode / 720p resolution
  • 1 SATA interface for HDD with up to 6TB capacity
  • Playback at up to 256x speed
  • Spport access by EZVIZ cloud P2P
Description

Description

SPECIFICATIONS
VIDEO / AUDIO INPUT
Video compression H.264
Analog and HD-TVI video input 4CH, BNC interface (1.0Vp-p, 75 Ω)
Supported camera types 1080P/25, 1080P/30, 720P/25, 720P/30, 720P/50, 720P/60
Supported AHD input 720P/25, 720P/30
IP video input 1-ch, up to 1080p resolution
Audio input / Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO / AUDIO OUTPUT
CVBS output 1-ch, BNC91.0vp-p), resolution 705×576
HDMI / VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Ecoding resolution When 1080P lite mode not enabled
1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
When 1080P lite mode enabled; 1080P lite / 720P
lite / 720P / VGA / WD1 / 4CIF / CIF
Frame rate Main stream: 1/16fps to Real-time frame rate
Sub stream: WD1 / 4CIF@12fps, CIF/QVGA/QCIF@ real-time
Video bitrate 32kbps to 6Mbps
Audio output 1-ch, RCA(Linear, 1ohm)
Audio bitrate 64kbps
Stream type Video / Audio
Synchronous playback 4-ch
NETWORK MANAGEMENT
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1x 10M / 100M self-adaptive Ethernet interface
Serial interface 1 standard RS-485 serial interface, half duplex
USB port 2× USB2.0
GENERAL
Power supply 12V DC
Consumption (without hard disks) ≤ 15W
Working temperature -10 ºC ~ 55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis Standard 1U chassis
Dimensions (W × D × H) 315 x 242 x 45mm
Weight (without hard disks) ≤ 2Kg (4.4lb)
