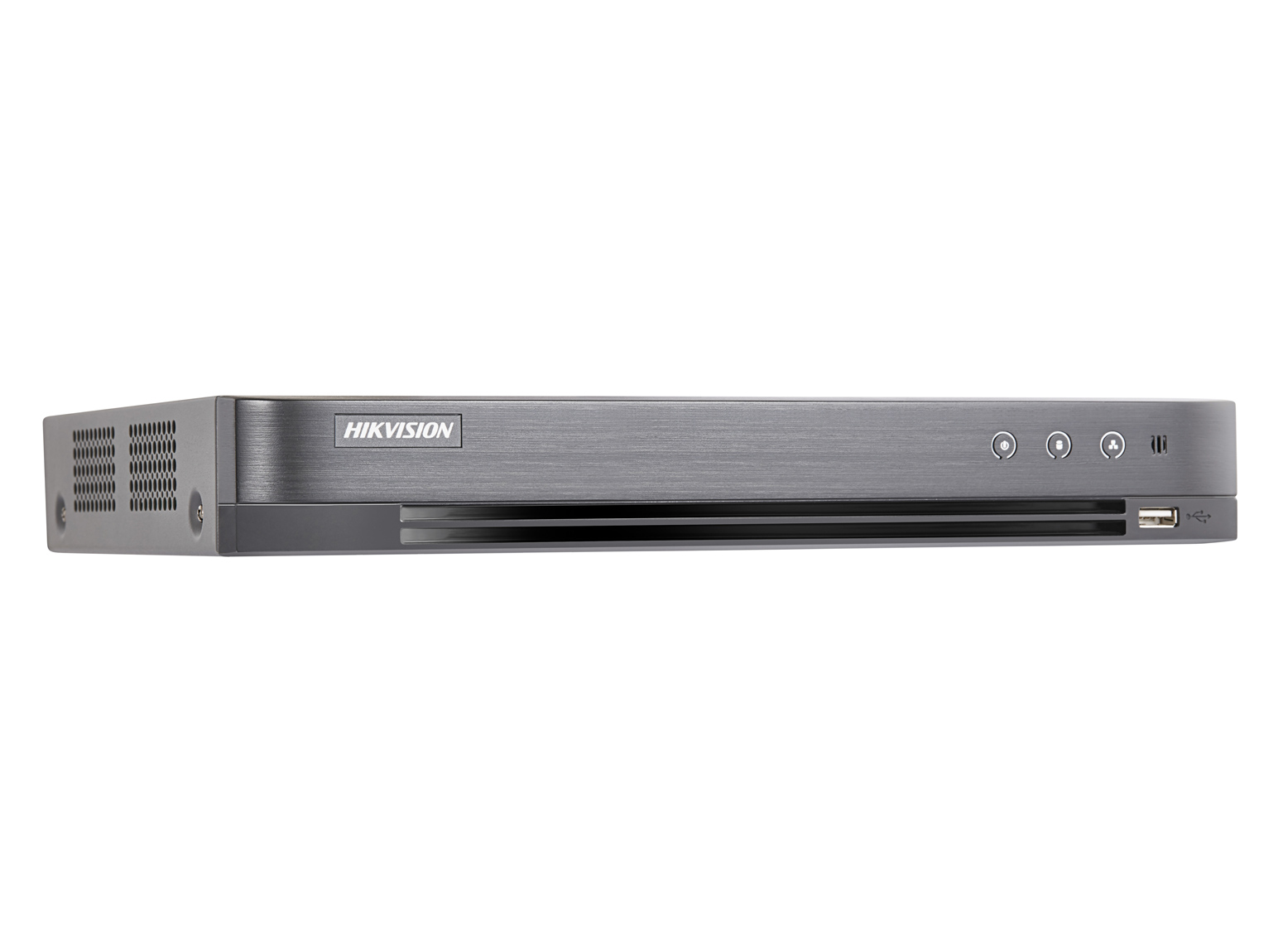

DS-7216HUHI-K2

16CH 5MP/4MP Turbo HD 4.0 DVR

  • Self Self -adaptive HDTVI/ HDCVI/ AHD/ CVBS signal input
  • H.265 /H.265/H.264 /H.264 encoding for the main stream
  • 5MP/4MP HDTVI video input and recording
  • Up to 6MP IP cameras input
  • Long distance transmission over UTP and coaxial cable
  • Hik-Connect & DDNS for easy network management
Description

Description

SPECIFICATIONS
VIDEO / AUDIO INPUT
Video compression H.265 /H.265/H.264 /H.264
Analog and HD-TVI video input 16CH, BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input 2-ch, (Up to 6 MP resolution), Supports H.265 /H.265/H.264 /H.264 IP cameras
Audio compression G.711u
Audio input / Two-way audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO / AUDIO OUTPUT
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI / VGA output VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Ecoding resolution 5MP/ 4MP/ 4MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF
Frame rate Main stream: 5MP@12fps/ 4MP@15fps/ 3MP@18fps/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N)
Sub-stream: WD1/ 4CIF/ CIF@25fps (P)/ 30fps(N)
Video bitrate 32kbps to 10Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bitrate 64kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch
NETWORK MANAGEMENT
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 2 SATA interfaces
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Two-wau audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB port 2 × USB 2.0
Alarm in/out 16/4
Serial interface RS-485 (half-duplex)
GENERAL
Power supply 12 VDC
Consumption (without hard disks) ≤ 25 W
Working temperature -10 ºC ~ 55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Dimensions (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without hard disks) ≤ 2 kg
