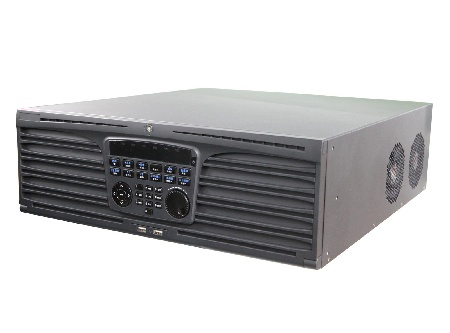

DS-9632NI-I16

32CH Advacned Embedded NVR

  • Dual-OS design to ensure high reliability of system running
  • Recording up to 12MP resolution
  • HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable
  • ANR technology to enhance the storage reliability when network is disconnected
  • Up to 16 SATA interfaces
  • Embedded with H.264 latest compression technology
Description

Description

Specifications
VIDEO / AUDIO INPUT
IP video input 32CH
Up to 12MP resolution
Two-way audio 1-ch, RCA(2.0Vp-p, 1kΩ)
NETWORK
Incoming bandwidth 320Mbps or 200Mbps (When RAID is enabled)
Outgoing bandwidth 256Mbps or 200Mbps (When RAID is enabled)
VIDEO / AUDIO OUTPUT
Decoding resolution 12MP / 8MP / 6MP / 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI 1/VGA 1 output HDMI 1: 4K(3840 x 2160)/60Hz, 2K(2560 x 1440)/60Hz, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA 1: 2K(2560 x 1440)/60Hz, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio output 2-ch, RCA (Linear, 1kΩ)
DECODING
Decoding Format H.265/H.264/MPEG-4
Live / Playback resolution 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch
Capability 4-ch@4K, 16-ch@1080P
HARD DISK
SATA 16 SATA interfaces for 16 HDDs
eSATA 1 eSATA interface
Capacity Up to 6TB for each disk
Array Type RAID0, RAID1, RAID5, RAID10
VCA events IPC uploading supported
EXTERNAL INTERFACE
Network interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial interface RS-232 and RS-485
USB interface Font panel: 2x USB 2.0; Rear panel 1x 3.0 USB
Alarm in/out 16 / 8
OTHERS
Power supply 100 ~ 240 VAC
Max. Power 300W
Consumption ≤ 45W
Working temperature -10 ºC ~ 55 ºC ( 14 ºF~ 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions 445 × 496 × 146 mm
Weight ≤ 12.5 Kg (27.6 lb)
