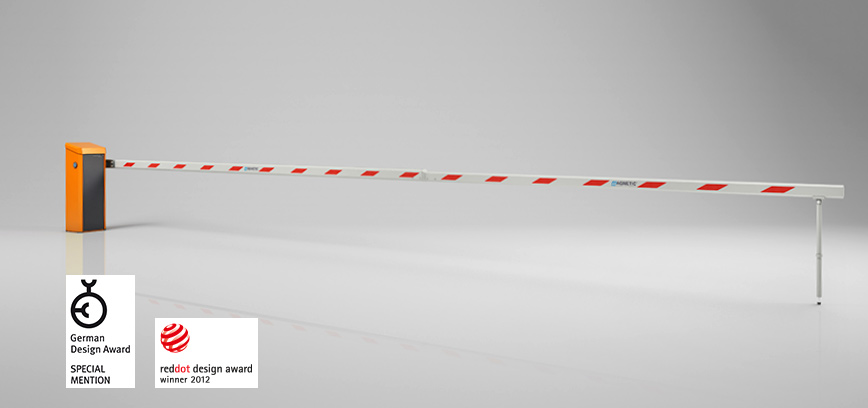

Access XXL Barrier

Access XXL Barrier

Category:
Description

Description

echnical data Access XXL
Barrier width Max. 10,0 m
Opening/closing time 8,0 s
Power consumption Max. 30 W
Drive technology MHTM™
Voltage 85-264 VAC, 50/60 Hz
Duty cycle 100%
Housing dimensions (L x W x H) 435 x 360 x 1164 mm
Enclosure rating IP 54
Temperature range -30 to 55 °C
Weight 112 kg
Features Access XXL
Standard colours RAL 2000
VarioBoom barrier arm MicroBoom XL
Control system MGC Pro
Integrated 2-channel detector for induction loops Standard
Modular expansion of control system Freely expandable
Variable I/O assignment Standard
No. of digital inputs 8
No. of relays/digital outputs 6/4
Input for safety light barrier with test Standard
Selectable closing speed Standard
Selectable opening speed Standard
Options Access XXL
Special colours x
Standard boom skirt x
Boom skirt with climb-over prevention (height = 1,30 m) x (Up to 6 m boom length)
Boom skirt with climb-over prevention (height = 1,80 m) x (Up to 6 m boom length)
Pendulum support* x
Support post* x
Boom locking set x
Boom illumination, red** x
Light strips, red/green*** x
Cover illumination x
Key-operated switch x
Radio module x
Ethernet module x
RS485 module x
CAN module (counting) x
Second detector module x
GSM module x
Photoelectric light barrier x
[rt_button_style title=”Catalogue” link=”url:https://www.magnetic-access.com/files/data-DE/datenblaetter/DB_Access_XL2_XXL_en.pdf|||”]
