Description
| Technical Data | Toll | Toll Pro | Toll Pro 2 | Toll HighSpeed | Toll HighSpeed 2 |
|---|---|---|---|---|---|
| Barrier width | max. 3.0 m | max. 3.0 m | max. 3.0 m | max. 3.0 m | max. 3.2 m (with 2 barriers) |
| Opening/closing time | 1.3 s | 0.9 s | 0.7 s | 0.6 s | 0.3 s |
| Power consumption | max. 55 W | max. 95 W | max. 225 W | max. 320 W | max. 450 W |
| Drive technology | MHTM™ | MHTM™ | MHTM™ | MHTM™ | MHTM™ |
| Voltage | 85-264 VAC, 50/60 Hz | 85-264 VAC, 50/60 Hz | 85-264 VAC, 50/60 Hz | 85-264 VAC, 50/60 Hz | 85-264 VAC, 50/60 Hz |
| Duty cycle | 100 % | 100 % | 100 % | 100 % | 100 % |
| Housing dimensions (W x D x H) | 315 x 360 x 1115 mm | 315 x 360 x 1115 mm | 315 x 360 x 1115 mm | 315 x 360 x 1115 mm | 315 x 360 x 1115 mm |
| Enclosure rating | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 |
| Temperature range | -30 to 55 °C | -30 to 55 °C | -30 to 55 °C | -30 to 55 °C | -30 to 55 °C |
| Weight | approx. 42 kg | approx. 42 kg | approx 43 kg | approx. 44 kg | approx. 44 kg |
| Features | Toll | Toll Pro | Toll Pro 2 | Toll HighSpeed | Toll HighSpeed 2 |
|---|---|---|---|---|---|
| Standard colour | RAL 2000 | RAL 2000 | RAL 2000 | RAL 2000 | RAL 2000 |
| Barrier boom | 3 models available | 3 models available | 3 models available | 3 models available | 3 models available |
| Control system | 3 models available | 3 models available | 3 models available | 3 models available | 3 models available |
| Number of digital inputs | 8 | 8 | 8 | 8 | 8 |
| Number of relay/digital outputs | 6/4 | 6/4 | 6/4 | 6/4 | 6/4 |
| Closing speed | adjustable | adjustable | adjustable | adjustable | adjustable |
| Control systems | MGC without loop detector | MGC with loop detector | MGC Pro |
|---|---|---|---|
| 2 detector channels | x | x | |
| Adjustable inputs/outputs | x | ||
| 3 opening speeds | x |
| Options | Toll | Toll Pro | Toll Pro 2 | Toll HighSpeed | Toll HighSpeed 2 |
|---|---|---|---|---|---|
| Special colours | x | x | x | x | x |

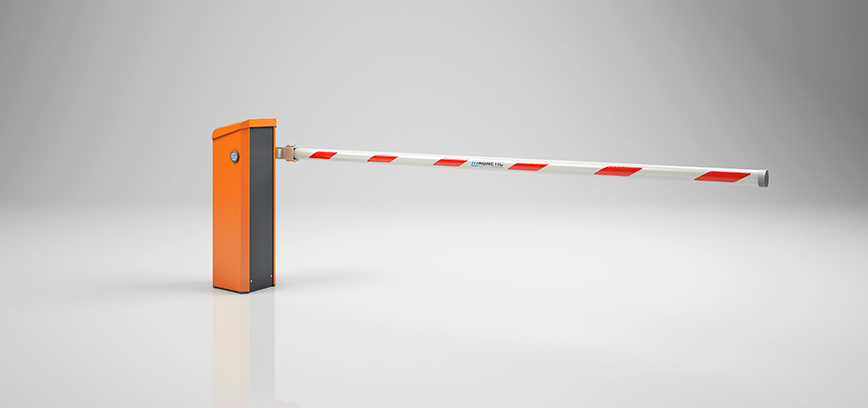

| Round boom (MicroBoom-T) | up to 3.0 m | up to 3.0 m | up to 3.0 m | up to 3.0 m | up to 1.5 m |
| Octagonal boom (MicroBoom-S) | up to 3.5 m | up to 2.5 m | up to 2.5 m | up to 2.5 m | |
| Soft boom (MicroBoom-AT) | up to 3.0 m | up to 3.0 m | up to 3.0 m | up to 3.0 m | up to 1.5 m |
| Swing-away flange | only soft boom | only soft boom | only soft boom | only soft boom | only soft boom |
| Boom drop contact | x | x | x | x | x |
| Cover illumination | x | x | x | x | x |
| Key-operated switch | x | x | x | x | x |
| Radio module | x | x | x | x | x |
| Ethernet module | x | x | x | x | x |
| RS485 module | x | x | x | x | x |
| CAN module (counting) | x | x | x | x | x |
| Second detector module | x | x | x | x | x |
| GSM module | x | x | x | x | x |
| Safety light barrier | x | x | x | x | x |
| Battery backup | x | x |
